Parameters for the large displacement suspension components templates are entered in the same manner as for the loudspeaker templates. The ‘Design Panel’, which is the left hand pane shown in the diagram opposite, has the following three tabs:
- Input – parameter specification.
- Options – setting the axial displacement and the number of load steps in 100% of the load.
- Display – for configuration, display and export of results, e.g. load step, deformed shape, force v displacement, stiffness v displacement and compliance v displacement.

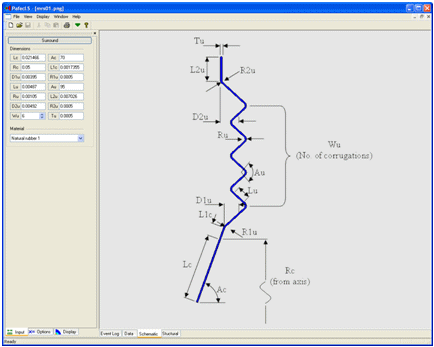

Corrugated surround schematic
Force v Axial Displacement graph

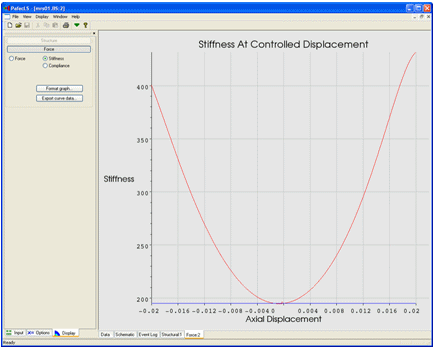

Stiffness v Axial Displacement graph

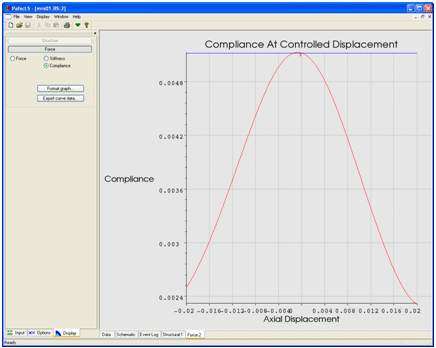

Compliance v Axial Displacement graph
